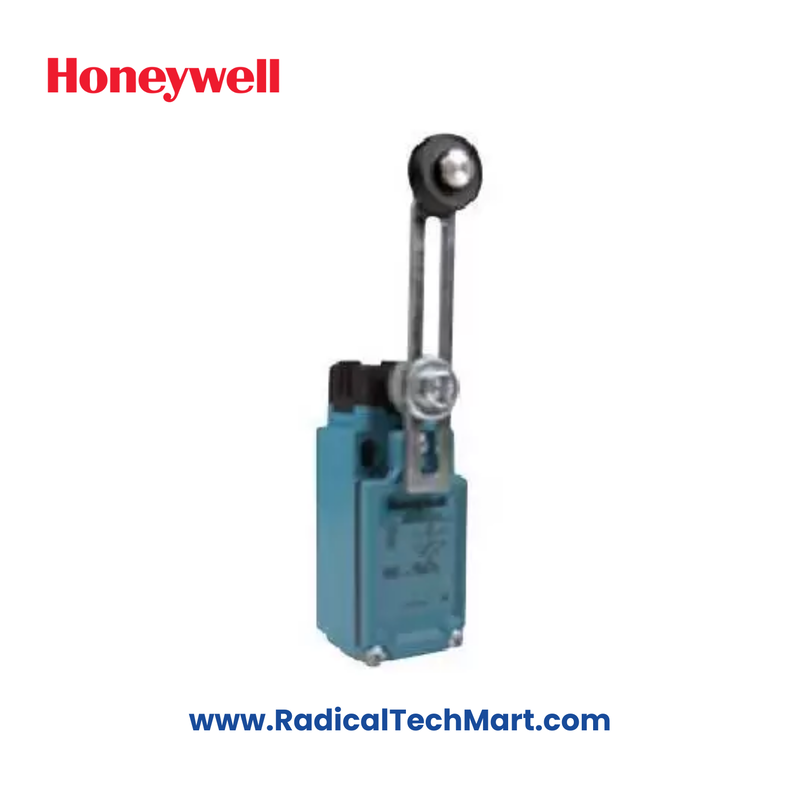

GLDB01A2A Honeywell Limit Switch

Product Description: Honeywell GLDB01A2A

1. Brand: Honeywell
2. Model: GLDB01A2A

3. Actuators Options:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

4. Termination Options:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch-style 4-pin connector
• Additional cable/connector options available (contact Honeywell Representative).

5. Contact Options:

• GLC (metal housing) and GLD (plastic housing):
  • 1NC/1NO, 2NC, 2NO
• GLE (metal housing):
  • 1NC/1NO, 2NC, 2NO, 2NC/2NO

6. Contact Type:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

7. Contact Material:

• Silver (standard)
• Gold-plated (for low-energy applications)

8. Electrical Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV

9. Environmental Specifications:

• Sealing: NEMA 1, 4, 12, 13; IP66
• Operating Temperature Range: -40 °C to 85 °C (-40 °F to 185 °F)
• Pollution Code: 3

10. Mechanical Specifications:

• Mechanical Life: Up to 10 million cycles
• Max. Actuation Frequency:
  • 250 operations/minute
  • 100 operations/minute (wobbles)
• Shock Resistance: 50 g (per IEC 60068-2-27); Railway application per IEC 61373 Class I Car B Type
• Vibration Resistance: 10 g (per IEC 60068-2-6); Railway application per IEC 61373 Class I Car B Type

11. Approvals and Certifications:

• CE
• UKCA
• UL
• CSA
• CCC1

12. Conformance to Standards:

• EN50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN45545-2 (GLC/GLE)
